Dual Supply GreenPAK

Dual Supply GreenPAK™
Mixed-signal Matrix Devices
GreenPAK Designer software for Windows, macOS or Linux
Highly versatile NVM Programmable Mixed-signal Matrix devices
Designed to flexibly interface two independent voltage domains using the programmable logic, timing, and analog components available on all GreenPAK family devices.
These members of the GreenPAK family can easily add level translation capability to the set of functions implemented on an individual design. There is flexibility for doing level translation from either the higher voltage domain to the lower voltage domain, or the other direction also.
Developing Dual Supply GreenPAK projects is made simple with the easy-to-use GreenPAK development hardware and simple GUI interface of GreenPAK Designer, allowing our customers to quickly and easily implement new designs and respond to changing requirements.

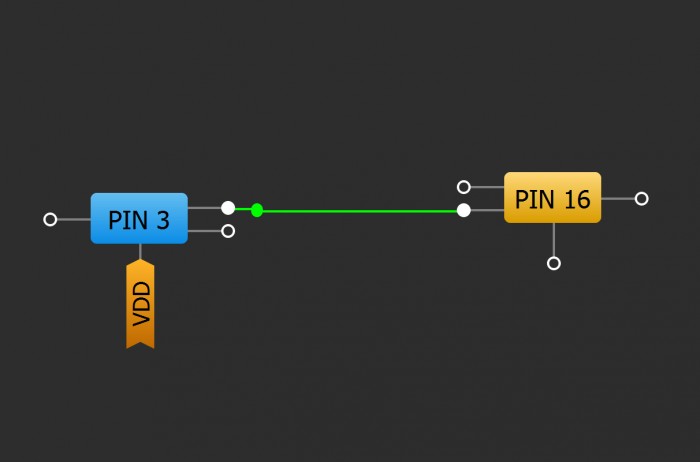

The simplest use case for this family of devices is making a direct connection to transmit signals across two voltage domains. In figure 1 below, the I/O pins which connect to the primary supply voltage (Vdd) are highlighted in blue, and the I/O pins connected to the lower voltage supply (Vdd2) are highlighted in gold. Making a direct wire connection, as is shown here, will allow a signal to pass from Pin 16 on the Vdd2 domain to Pin 3 on the Vdd domain.
Figure 1. Simple Dual Supply Implementation

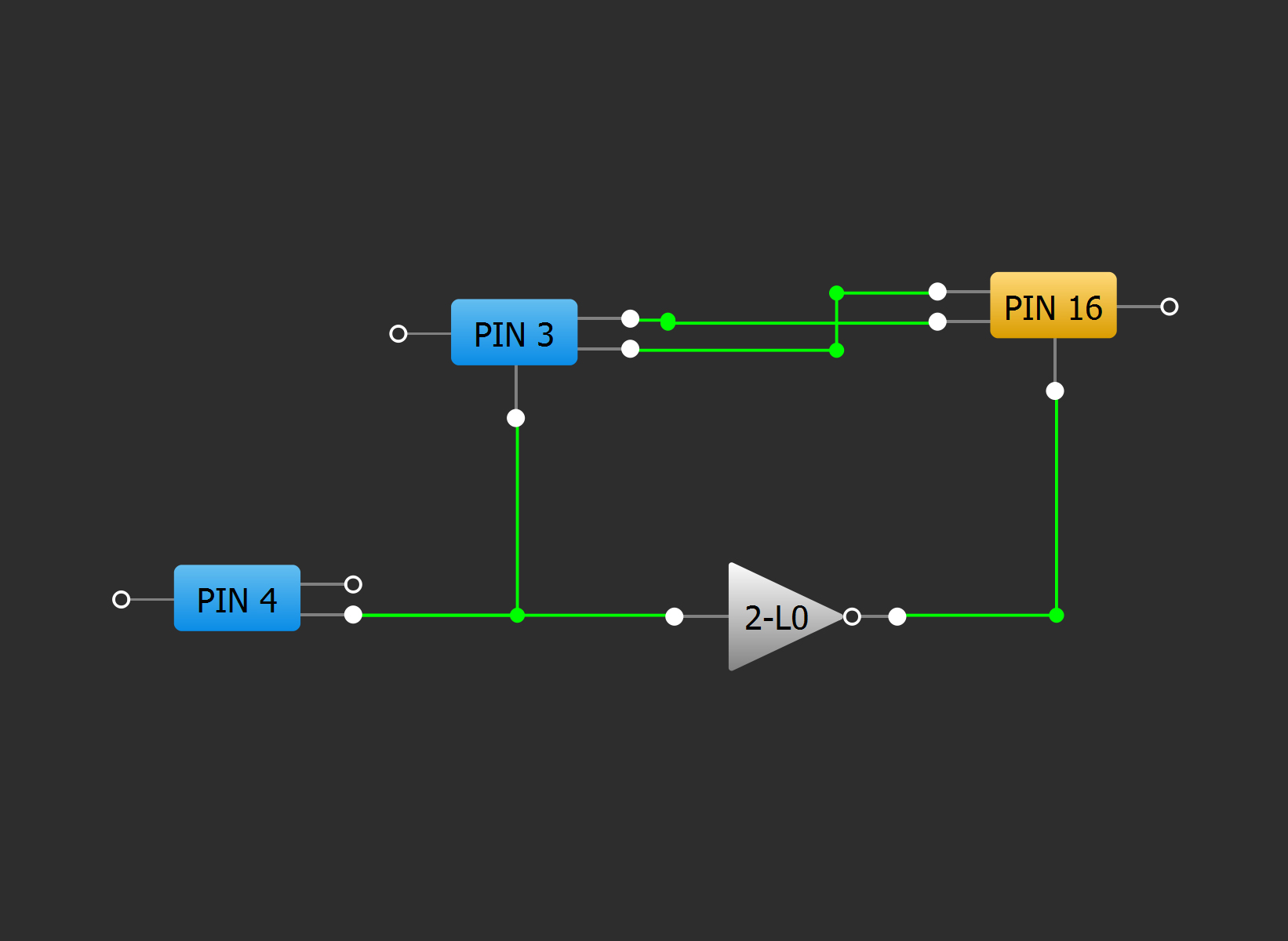

It is also possible to enable signals to selectively pass one direction or the other, under control of another signal. An example of this is shown in Fig 2 below, where a signal can either originate in Pin 3 or Pin 16, with the direct selected based on the state of Pin 4.
Figure 2. Dual Supply GreenPAK Implementation
PN | Special Feature | GPIO | Nominal VDD (V) |
ACMP | DCMP/PWM | Max. CNT/DLY | Max. LUTs | Max. DFF | Pipe Delay |
Progr. DLY | OSC | Com. Interface | Package Size (mm) | Socket | Documents |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SLG46127 | 2x P-FET | 6 | 1.8 - 5.0 | 2 | - | 4 | 10 | 4 | 8-stage | 1 | RC OSC | - | 1.6 x 2.0 mm | MSTQFN-16 (#1) | Documentation |
SLG46580 | ASMLDO | 9 | 2.5 - 5.0 | 4 | - | 5 | 16 | 9 | 16-stage | 1 | Conf. OSCLP OSC | I²C | 2.0 x 3.0毫米 | STQFN-20 (#3) | Documentation |
SLG46582 | ASMLDO | 9 | 2.5 - 5.0 | 4 | - | 5 | 16 | 9 | 16-stage | 1 | Conf. OSCLP OSC | I²C | 2.0 x 3.0毫米 | STQFN-20 (#3) | Documentation |
SLG46583 | ASMLDO | 9 | 2.5 - 5.0 | 4 | - | 5 | 16 | 9 | 16-stage | 1 | Conf. OSCLP OSC | I²C | 2.0 x 3.0毫米 | STQFN-20 (#3) | Documentation |
SLG46585 | ASMLDODCDC | 9 | 2.5 - 5.0 | 4 | - | 5 | 16 | 9 | 16-stage | 1 | Conf. OSCLP OSC | I²C | 3.0 x 3.0 mm | MSTQFN-29 (#1) | Documentation |
SLG46533 | - | 18 | 1.8 - 5.0 | 4 | - | 7 | 25 | 15 | 16-stage | 1 | Conf. OSCRing OSCCrystal OSC | I²C | 2.0 x 2.2 mm 2.0 x 3.0毫米 |
MSTQFN-22 (#1)STQFN-20 (#1) | Documentation |
SLG46538 | ASMDual Supply | 17 | 1.8 - 5.01.8 - VDD1 | 4 | - | 7 | 17 | 8 | 16-stage | 1 | Conf. OSCRC OSCCrystal OSC | I²C | 2.0 x 3.0毫米 2.0 x 2.2 mm |
STQFN-20 (#2)MSTQFN-22 (#2) | Documentation |
SLG46538-A | ASMDual Supply | 17 | 1.8 - 5.01.8 - VDD1 | 4 | - | 7 | 17 | 8 | 16-stage | 1 | Conf. OSCRC OSCCrystal OSC | I²C | 2.0 x 3.0毫米 2.0 x 2.2 mm |
STQFN-20 (#2)MSTQFN-22 (#2) | Documentation |
SLG46537 | ASM | 18 | 1.8 - 5.0 | 4 | - | 7 | 17 | 8 | 16-stage | 1 | Conf. OSCRC OSCCrystal OSC | I²C | 2.0 x 3.0毫米 2.0 x 2.2 mm |
STQFN-20 (#1)MSTQFN-22 (#1) | Documentation |
SLG46536 | - | 12 | 1.8 - 5.0 | 3 | - | 7 | 25 | 15 | 16-stage | 1 | Conf. OSCRing OSCCrystal OSC | I²C | 2.0 x 2.2 mm | STQFN-14 (#2) | Documentation |
SLG46535 | ASMDual Supply | 11 | 1.8 - 5.01.8 - VDD1 | 3 | - | 7 | 17 | 8 | 16-stage | 1 | Conf. OSCRing OSCCrystal OSC | I²C | 2.0 x 2.2 mm | STQFN-14 (#3) | Documentation |
SLG46534 | ASM | 12 | 1.8 - 5.0 | 3 | - | 7 | 17 | 8 | 16-stage | 1 | Conf. OSCRC OSCCrystal OSC | I²C | 2.0 x 2.2 mm | STQFN-14 (#2) | Documentation |
SLG46170 | - | 12 | 1.8 - 5.0 | - | - | 8 | 17 | 6 | 16-stage | 1 | RC OSC | - | 2.0 x 2.2 mm | STQFN-14 (#2) | Documentation |
SLG46169 | - | 12 | 1.8 - 5.0 | 2 | - | 7 | 18 | 6 | 16-stage | 1 | RC OSC | - | 2.0 x 2.2 mm | STQFN-14 (#2) | Documentation |
SLG46108 | - | 6 | 1.8 - 5.0 | - | - | 4 | 10 | 4 | 8-stage | 1 | RC OSC | - | 1.0 x 1.2 mm | STQFN-8 (#1) | Documentation |
SLG46121 | Dual Supply | 9 | 1.8 - 5.01.8 - VDD1 | 2 | - | 4 | 16 | 8 | 8-stage | 1 | RC OSC | - | 1.6 x 1.6 mm | STQFN-12 (#2) | Documentation |
SLG46621 | Dual Supply8-bit ADC | 17 | 1.8 - 5.01.8 - VDD1 | 6 | 3/3 | 10 | 26 | 12 | 16-stage 2 | 2 | LF OSCRing OSCRC OSC | SPI | 2.0 x 3.0毫米 | STQFN-20 (#2) | Documentation |
SLG46620 | 8-bit ADC | 18 | 1.8 - 5.0 | 6 | 3/3 | 10 | 26 | 12 | 16-stage 2 | 2 | LF OSCRing OSCRC OSC | SPI | 2.0 x 3.0毫米 6.5 x 6.4 mm |
STQFN-20 (#1)TSSOP-20 (#1) | Documentation |
SLG46620-A | 8-bit ADC | 18 | 1.8 - 3.3 | 6 | 3/3 | 10 | 26 | 12 | 16-stage 2 | 2 | LF OSCRing OSCRC OSC | SPI | 6.5 x 6.4 mm | TSSOP-20 (#1) | Documentation |
SLG46117 | 1x P-FET | 7 | 1.8 - 5.0 | 2 | - | 4 | 10 | 4 | 8-stage | 1 | RC OSC | - | 1.6 x 2.5 mm | STQFN-14 (#1) | Documentation |
SLG46116 | 1x P-FET | 7 | 1.8 - 5.0 | 2 | - | 4 | 10 | 4 | 8-stage | 1 | RC OSC | - | 1.6 x 2.5 mm | STQFN-14 (#1) | Documentation |
SLG46140 | 8-bit ADC | 12 | 1.8 - 5.0 | 2 | 3/3 | 4 | 16 | 6 | 16-stage | 1 | LF OSCRing OSCRC OSC | SPI | 1.6 x 2.0 mm | STQFN-14 (#1) | Documentation |
SLG46120 | - | 10 | 1.8 - 5.0 | 2 | - | 4 | 16 | 8 | 8-stage | 1 | RC OSC | - | 1.6 x 1.6 mm | STQFN-12 (#1) | Documentation |
SLG46110 | - | 8 | 1.8 - 5.0 | 2 | - | 4 | 10 | 4 | 8-stage | 1 | RC OSC | - | 1.6 x 1.6 mm | STQFN-12 (#1) | Documentation |
SLG46722 | - | 18 | 1.8 - 5.0 | - | - | 8 | 17 | 6 | 16-stage | 1 | RC OSC | - | 2.0 x 3.0毫米 | STQFN-20 (#1) | Documentation |
SLG46721 | - | 18 | 1.8 - 5.0 | 4 | - | 7 | 18 | 6 | 16-stage | 1 | RC OSC | - | 2.0 x 3.0毫米 | STQFN-20 (#1) | Documentation |
SLG46824 | In-System ProgrammabilityDual Supply | 17 | 2.5 - 5.01.8 - VDD1 | 2 | - | 8 | 19 | 17 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 2.0 x 3.0毫米 6.5 x 6.4 mm |
STQFN-20 (#4)TSSOP-20 (#2) | Documentation |
SLG46826 | In-System ProgrammabilityDual Supply | 17 | 2.5 - 5.01.8 - VDD1 | 4 | - | 8 | 19 | 17 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 2.0 x 3.0毫米 6.5 x 6.4 mm |
STQFN-20 (#4)TSSOP-20 (#2) | Documentation |
SLG46827-A | In-System DebugDual Supply | 17 | 2.5 - 5.01.8 - VDD1 | 4 | - | 8 | 19 | 17 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 2.0 x 3.0毫米 6.5 x 6.4 mm |
STQFN-20 (#4)TSSOP-20 (#2) | Documentation |
SLG46880 | ASMDual Supply | 28 | 2.5 - 5.02.5 - VDD1 | 4 | - | 5 | 12 | 5 | 16-stage | 1 | RC OSCLP OSCRing OSCCrystal OSC | I²C | 4.0 x 4.0 mm | STQFN-32 (#1) | Documentation |
SLG46881 | ASMDual Supply | 28 | 2.5 - 5.01.0 - 1.8 | 4 | - | 5 | 12 | 5 | 16-stage | 1 | RC OSCLP OSCRing OSCCrystal OSC | I²C | 4.0 x 4.0 mm | STQFN-32 (#1) | Documentation |
SLG46517 | ASM2x P-FET | 16 | 1.8 - 5.0 | 4 | - | 7 | 17 | 8 | 16-stage | 1 | RC OSCRing OSCCrystal OSC | I²C | 2.0 x 3.0毫米 | MSTQFN-28 (#1) | Documentation |
SLG46855 | - | 12 | 2.5 - 5.0 | 4 | - | 8 | 23 | 21 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 1.6 x 2.0 mm | STQFN-14 (#1) | Documentation |
SLG46855-A | - | 12 | 2.5 - 5.0 | 4 | - | 8 | 23 | 21 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 1.6 x 2.0 mm | STQFN-14 (#1) | Documentation |
SLG46867 | 2x P-FET | 10 | 2.5 - 5.0 | 4 | - | 8 | 23 | 21 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 1.6 x 3.0 mm | MSTQFN-20 (#1) | Documentation |
APP亚博娱乐 | Dual Supply4 Half- / 2 Full- bridgesI/V Regulation | 84 x HV | 2.5 - 5.03.3 - 12.0 | 2 | 0/2 | 5 | 17 | 15 | 16-stage | 1 | LP OSCRing OSC | I²C | 2.0 x 3.0毫米 | STQFN-20 (#5) | Documentation |
SLG47004 | Op AmpDigital RheostatAnalog SwitchAuto TrimIn-System Programmability | 8 | 2.5 - 5.0 | 3 | 0/0 | 7 | 20 | 18 | 16-stage | 1 | RC OSCLP OSCRing OSC | I²C | 3.0 x 3.0 mm | STQFN-24 (#1) | Documentation |
SLG88103 | Op Amp | 0 | 1.8 - 5.0 | 0 | 0/0 | 0 | 0 | 0 | - | 0 | - | - | 2.0 x 2.0 mm | - | Documentation |
SLG88104 | Op Amp | 0 | 1.8 - 5.0 | 0 | 0/0 | 0 | 0 | 0 | - | 0 | - | - | 2.0 x 3.5毫米 | - | Documentation |
For technical support or information on how to buy, contact us directly.
